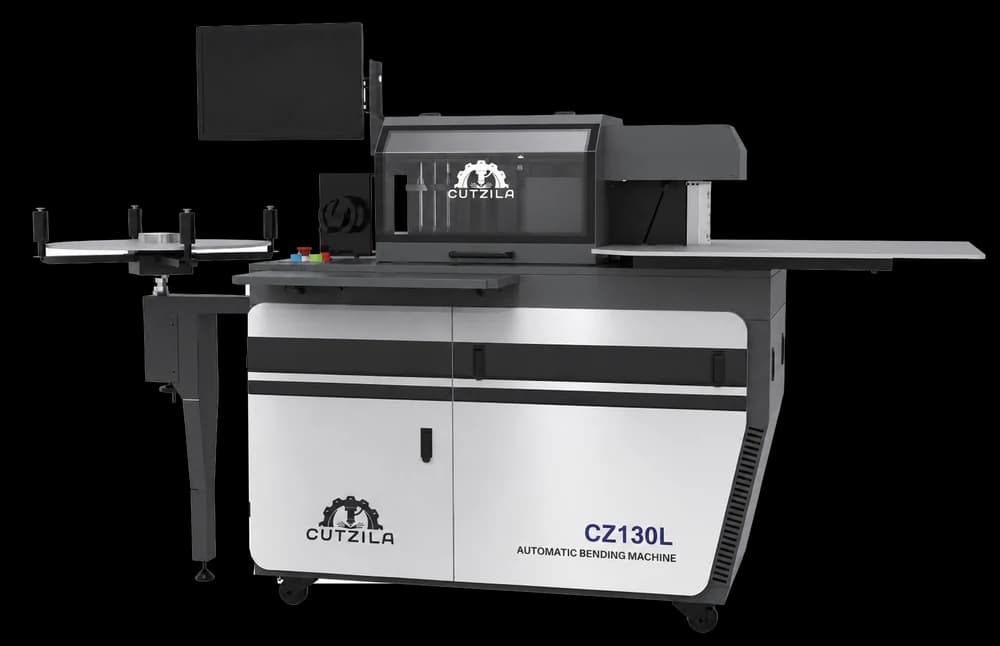

Automatic Aluminum Bending Machine
CZ-BEND-130L
Fully automatic aluminium channel-letter bender for signage production lines.
- Fully automatic aluminium channel-letter bender for signage production lines.
- Servo slotting and bending axes hold a tight, repeatable bend radius from R6.
- Dry compressed-air operation and a compact 2.5 kW footprint keep running costs low.

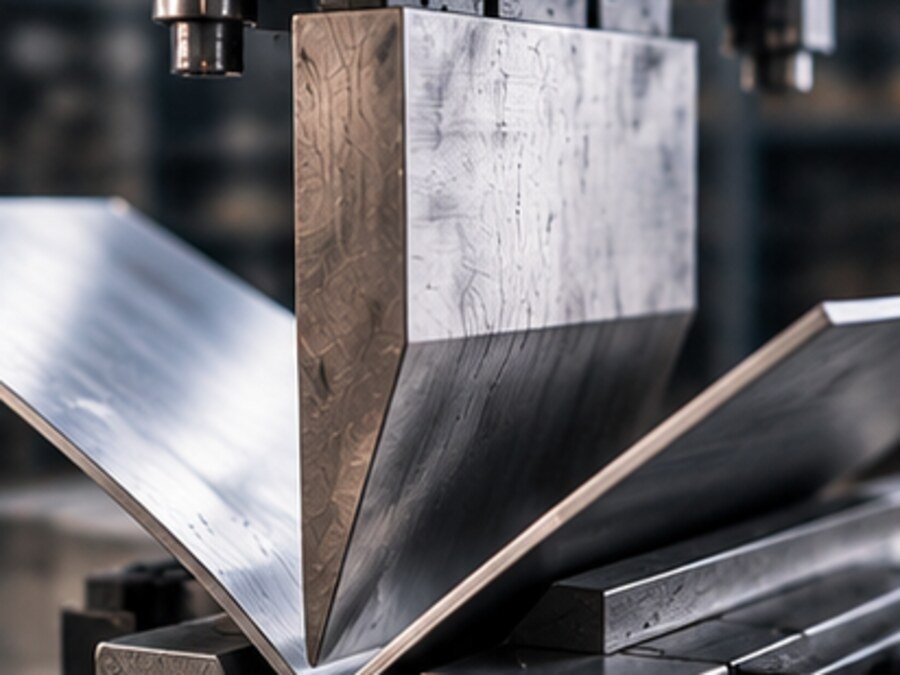

- Metal bending
- Mild steel
- Stainless steel
- Aluminium
- Galvanised sheet
Specifications
Specifications
| Technical parameter | Value |
|---|---|
| Minimum bending radius | Sheet ≥R6; aluminium profile ≥R8 (varies slightly by material) |
| Servo system | Slotting axis 750 W ×1; bending axis 750 W ×1 (CUTZILA servo) |
| Stepping system | Feeding, milling-swing, milling-lift, milling-depth and planing-depth axes |
| Air supply | Dry compressed air at 0.6 MPa |
| Power supply | 220 V, 50–60 Hz |
| Total power | 2.5 kW |
| Weight | 700 kg |
Why this machine
Built for the work
Fully automatic aluminium channel-letter bender for signage production lines.
- Fully automatic aluminium channel-letter bender for signage production lines.
- Servo slotting and bending axes hold a tight, repeatable bend radius from R6.
- Dry compressed-air operation and a compact 2.5 kW footprint keep running costs low.
