Fiber Laser Cutting

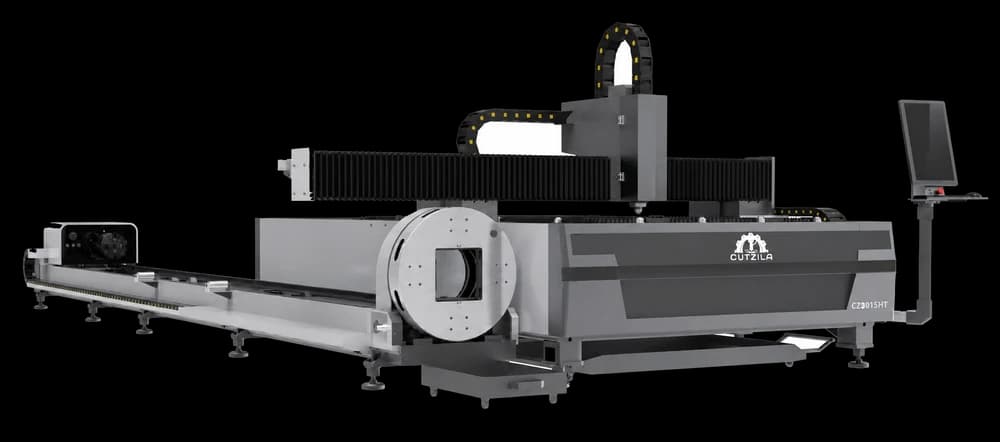

Plate and Tube Fiber Laser Cutting Machine — HT Series
CZ-FIBER-4015HT
Combined plate-and-tube fiber laser on one platform — cut sheet and profile without a second machine.
- Combined plate-and-tube fiber laser on one platform — cut sheet and profile without a second machine.
- Up to 80 kW laser power
- Four sheet sizes to 8000×2500 mm with a chuck for round and square tube.
Select size
- Laser cutting
- Mild steel
- Stainless steel
- Aluminium
- Brass & copper
- Galvanised sheet
Specifications
Specifications — 4000×1500 (4015HT)
| Technical parameter | 4000×1500 (4015HT) |
|---|---|
| Working area | 4000×1500 mm |
| Laser power | 3000–80000 W |
| Travel speed | 60 m/min |
| Max acceleration | 1.0 G |
| Positioning accuracy | ±0.05 mm |
| Repeat positioning accuracy | ±0.03 mm |
| Processing pipe diameter | □20–200 mm; ○20–225 mm |
| Chuck maximum speed | 100 r/min |
Why this machine
Built for the work
Combined plate-and-tube fiber laser on one platform — cut sheet and profile without a second machine.
- Combined plate-and-tube fiber laser on one platform — cut sheet and profile without a second machine.
- Up to 80 kW laser power; pipe capacity □20–200 mm and ○20–225 mm.
- Four sheet sizes to 8000×2500 mm with a chuck for round and square tube.
On the shop floor
What you can make
