Stage 01 · Log preparation
Wood Panel Production

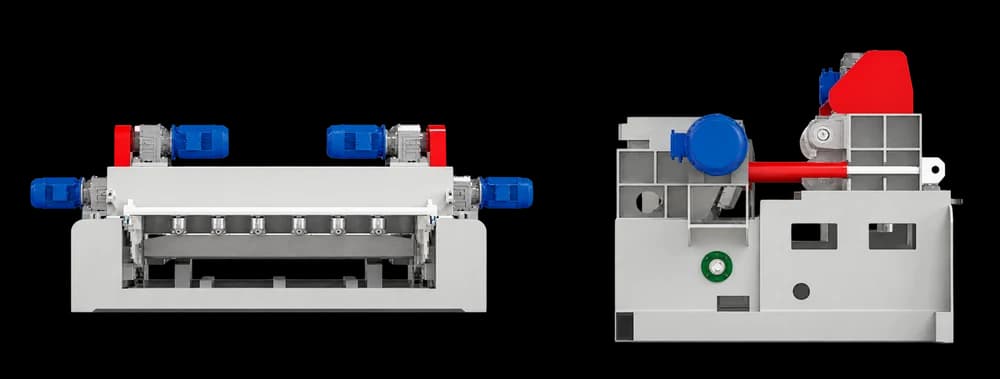

8 ft Heavy-Duty Log Debarking Machine
CZ-PR-004
Heavy frame; hardened-tooth gearbox
- Stage 01 of the CUTZILA plywood line (log preparation)
- Maximum wood size (D × L): 700 × 2700 mm
Specifications
Specifications
| Technical parameter | Value |
|---|---|
| Maximum wood size (D × L) | 700 × 2700 mm |
| Knife size | 2700 × 180 × 16 mm |
| Roller diameter | 220 mm |
| Support roller diameter | 150 mm |
| Speed | 50 m/min |
| Hydraulic station motor | 7.5 kW |
| Single roller motors | 15 kW × 2 |
| Double roller motors | 15 kW × 2 |
| Cylinder diameter / quantity | 80 mm × 2 |
| Weight | 9500 kg |
| Overall dimensions | 5000 × 2000 × 2400 mm |
Why this machine
Built for the work
Heavy frame; hardened-tooth gearbox; low-noise operation. Working width and opening diameter can be customized. Support rollers for large, heavy logs; larger motors and chrome-plated rollers.
- Stage 01 of the CUTZILA plywood line (log preparation); also supplied as a standalone machine.
- Maximum wood size (D × L): 700 × 2700 mm; Knife size: 2700 × 180 × 16 mm.
