Stage 02 · Veneer production
Wood Panel Production

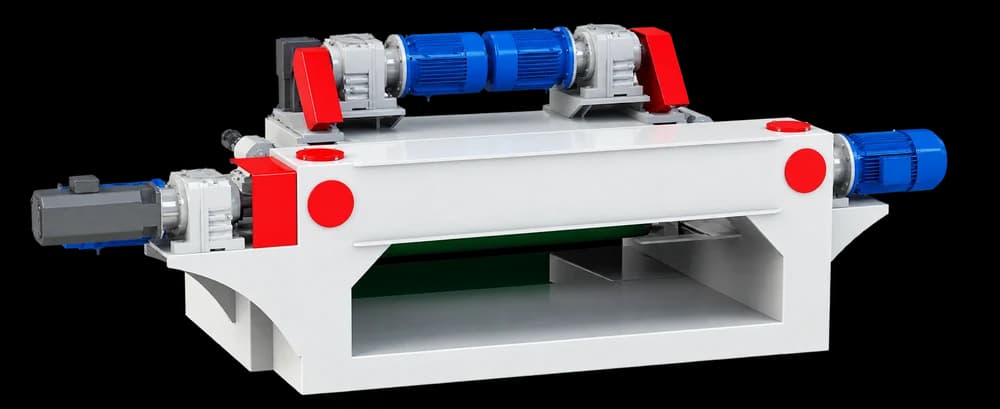

4 ft Veneer Peeling Machine
CZ-PR-005
High-speed steel peeling knife; adjustable speed
- Stage 02 of the CUTZILA plywood line (veneer production)
- Remaining core diameter: 35 mm
Specifications
Specifications
| Technical parameter | Value |
|---|---|
| Remaining core diameter | 35 mm |
| Speed | 40–80 m/min; adjustable |
| Guide screw diameter | 90 mm |
| Voltage options | 220 / 380 / 440 V |
| Cutting motor | 4 kW; servo |
| Rubber roller motor | 2.2 kW |
| Conveyor motor | 1.5 kW |
| Maximum log size (D × L) | 500 × 1400 mm |
| Veneer thickness | 1–5 mm |
| Peeling knife size | 1500 × 180 × 16 mm |
| Cutting knife size | 1400 × 140 × 12.7 mm |
| Single roller diameter | 125 mm |
| Double roller diameter | 125 mm |
| Guide rail | Dovetail |
| Total power | 44.7 kW |
| Single roller motors | 5.5 kW × 2 |
| Double roller motors | 7.5 kW × 2 |
| Feeding motor | 11 kW; servo |
| Weight | 5500 kg |
| Overall dimensions | 4400 × 2000 × 1600 mm |
| Thickness tolerance | ±0.05 mm |
Why this machine
Built for the work
High-speed steel peeling knife; adjustable speed; final veneer edge cutting.
- Stage 02 of the CUTZILA plywood line (veneer production); also supplied as a standalone machine.
- Remaining core diameter: 35 mm; Speed: 40–80 m/min; adjustable.
