Stage 02 · Veneer production
Wood Panel Production

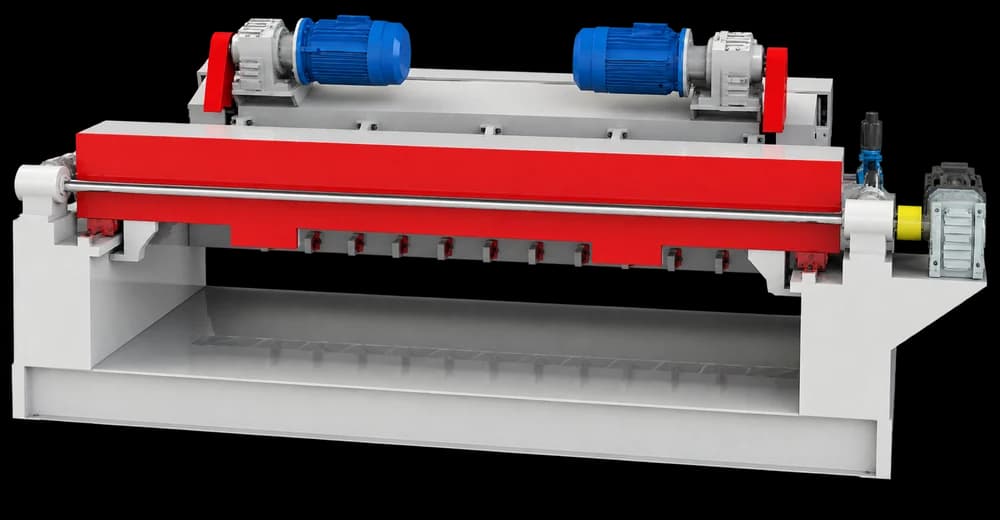

8 ft Heavy-Duty Veneer Peeling Machine
CZ-PR-008
Double-roller movement; HIWIN linear guides
- Stage 02 of the CUTZILA plywood line (veneer production)
- Remaining core diameter: 35 mm
Specifications
Specifications
| Technical parameter | Value |
|---|---|
| Remaining core diameter | 35 mm |
| Speed | 40–80 m/min; adjustable |
| Guide screw diameter | 90 mm |
| Voltage options | 220 / 380 / 440 V |
| Cutting motor | 4 kW; servo |
| Rubber roller motor | 2.2 kW |
| Conveyor motor | 1.5 kW |
| Maximum log size (D × L) | 500 × 2600 mm |
| Veneer thickness | 0.3–4 mm |
| Peeling knife size | 2700 × 180 × 16 mm |
| Cutting knife size | 2700 × 140 × 12.7 mm |
| Single roller diameter | 110 mm |
| Double roller diameter | 125 mm |
| Guide rail | Linear |
| Total power | 64.2 kW |
| Single roller motors | 7.5 kW × 2 |
| Double roller motors | 11 kW × 2 |
| Feeding motor | 15 kW; servo |
| Weight | 10000 kg |
| Overall dimensions | 5200 × 2200 × 1800 mm |
| Automatic knife setting motor | 1.5 kW; servo |
| Hydraulic station motor | 3 kW |
Why this machine
Built for the work
Double-roller movement; HIWIN linear guides; NSK bearings; T6 reducer; hydraulic knife holder; automatic knife-gap adjustment.
- Stage 02 of the CUTZILA plywood line (veneer production); also supplied as a standalone machine.
- Remaining core diameter: 35 mm; Speed: 40–80 m/min; adjustable.
