Stage 02 · Veneer production
Wood Panel Production

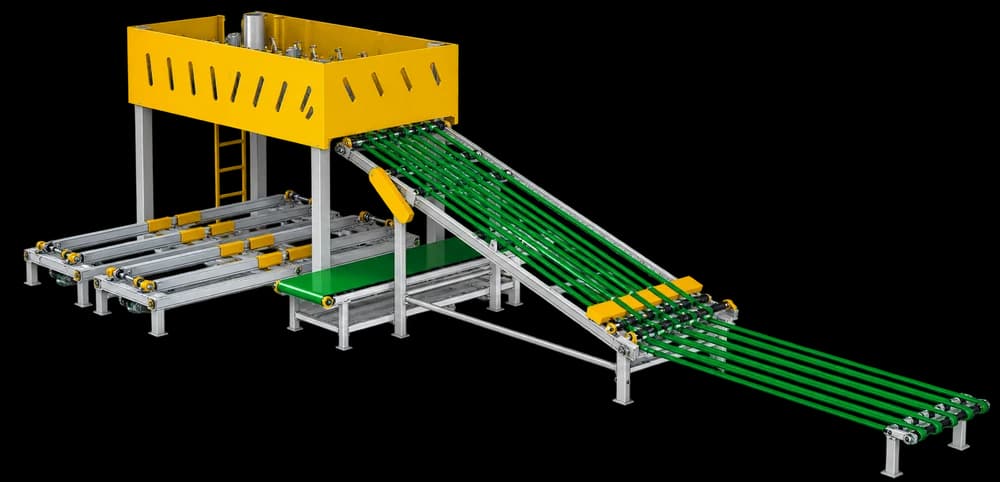

4 ft Double-Stack Veneer Stacker
CZ-PR-009
Used in the veneer production stage of a plywood line. Key figures — Stacking height: 0–1200 mm; Speed: 0–90 m/min
- Stage 02 of the CUTZILA plywood line (veneer production)
- Stacking height: 0–1200 mm
Specifications
Specifications
| Technical parameter | Value |
|---|---|
| Stacking height | 0–1200 mm |
| Speed | 0–90 m/min; adjustable |
| Draft fan motors | 2.2 kW × 6 |
| Weight | 4300 kg |
| Stacking length | 660–2600 mm |
| Stacking width | 960–1270 mm |
| Veneer thickness | 1–5 mm |
| Total power | 25.2 kW |
| Conveyor motors | 1.5 kW × 4 |
| Lifting motors | 3 kW × 2 |
| Overall dimensions | 10690 × 4255 × 3054 mm |
Why this machine
Built for the work
Used in the veneer production stage of a plywood line. Key figures — Stacking height: 0–1200 mm; Speed: 0–90 m/min; adjustable; Draft fan motors: 2.2 kW × 6.
- Stage 02 of the CUTZILA plywood line (veneer production); also supplied as a standalone machine.
- Stacking height: 0–1200 mm; Speed: 0–90 m/min; adjustable.
