Stage 02 · Veneer production
Wood Panel Production

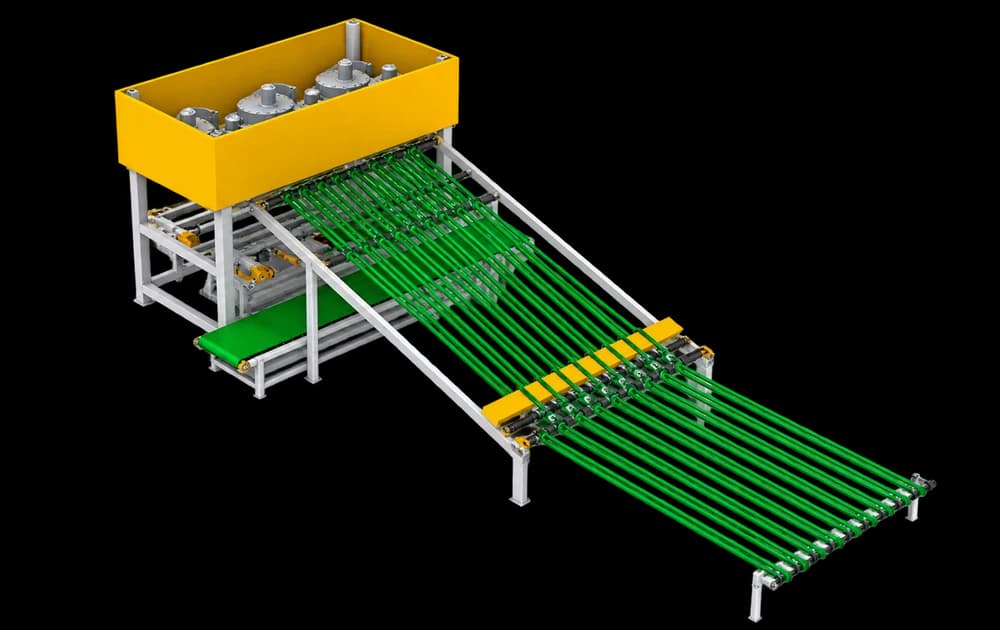

8 ft Single-Stack Veneer Stacker
CZ-PR-010
Used in the veneer production stage of a plywood line. Key figures — Stacking height: 0–1200 mm; Speed: 0–90 m/min
- Stage 02 of the CUTZILA plywood line (veneer production)
- Stacking height: 0–1200 mm
Specifications
Specifications
| Technical parameter | Value |
|---|---|
| Stacking height | 0–1200 mm |
| Speed | 0–90 m/min; adjustable |
| Draft fan motors | 2.2 kW × 6 |
| Weight | 4300 kg |
| Stacking length | 2000–2600 mm |
| Stacking width | 500–1300 mm |
| Veneer thickness | 0.5–3.6 mm |
| Total power | 22.2 kW |
| Conveyor motors | 3 kW × 2 |
| Lifting motor | 3 kW |
| Overall dimensions | 11000 × 3300 × 3329 mm |
Why this machine
Built for the work
Used in the veneer production stage of a plywood line. Key figures — Stacking height: 0–1200 mm; Speed: 0–90 m/min; adjustable; Draft fan motors: 2.2 kW × 6.
- Stage 02 of the CUTZILA plywood line (veneer production); also supplied as a standalone machine.
- Stacking height: 0–1200 mm; Speed: 0–90 m/min; adjustable.
