Stage 02 · Veneer production
Wood Panel Production

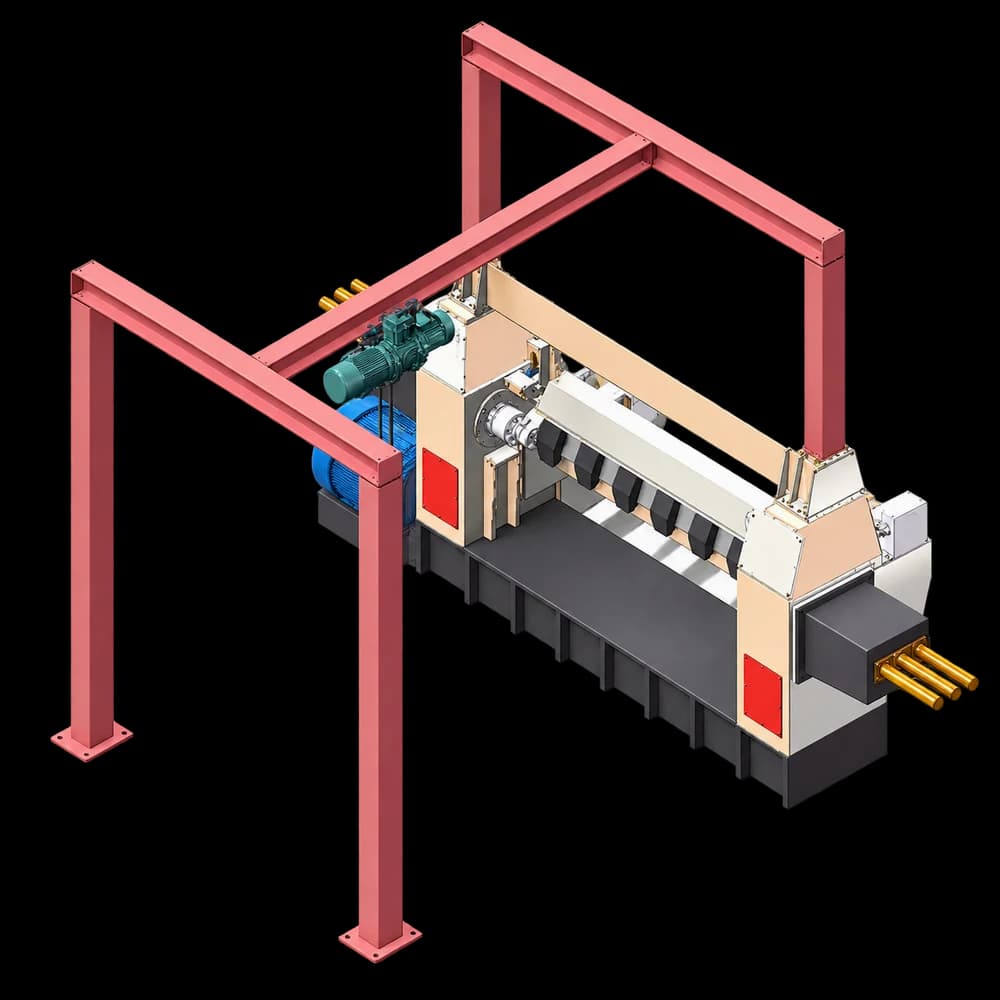

4 ft Hydraulic Double-Chuck Veneer Peeling Machine
CZ-PR-013
Used in the veneer production stage of a plywood line. Key figures — Maximum peeling diameter: 1600 mm; Wood length: 1300 mm
- Stage 02 of the CUTZILA plywood line (veneer production)
- Maximum peeling diameter: 1600 mm
Specifications
Specifications
| Technical parameter | Value |
|---|---|
| Maximum peeling diameter | 1600 mm |
| Wood length | 1300 mm |
| Peeling knife size | 1500 × 160 × 12.7 mm |
| Remaining core diameter | 130 mm |
| Speed | 40–80 m/min |
| Veneer thickness | 0.5–4 mm |
| Main motor | 55 kW |
| Feeding motor | 7.5 kW |
| Knife adjustment motor | 1.1 kW |
| Hydraulic station | 7.5 kW |
| Weight | 16000 kg |
| Overall dimensions | 6600 × 2300 × 2800 mm |
Why this machine
Built for the work
Used in the veneer production stage of a plywood line. Key figures — Maximum peeling diameter: 1600 mm; Wood length: 1300 mm; Peeling knife size: 1500 × 160 × 12.7 mm.
- Stage 02 of the CUTZILA plywood line (veneer production); also supplied as a standalone machine.
- Maximum peeling diameter: 1600 mm; Wood length: 1300 mm.
