Stage 02 · Veneer production
Wood Panel Production

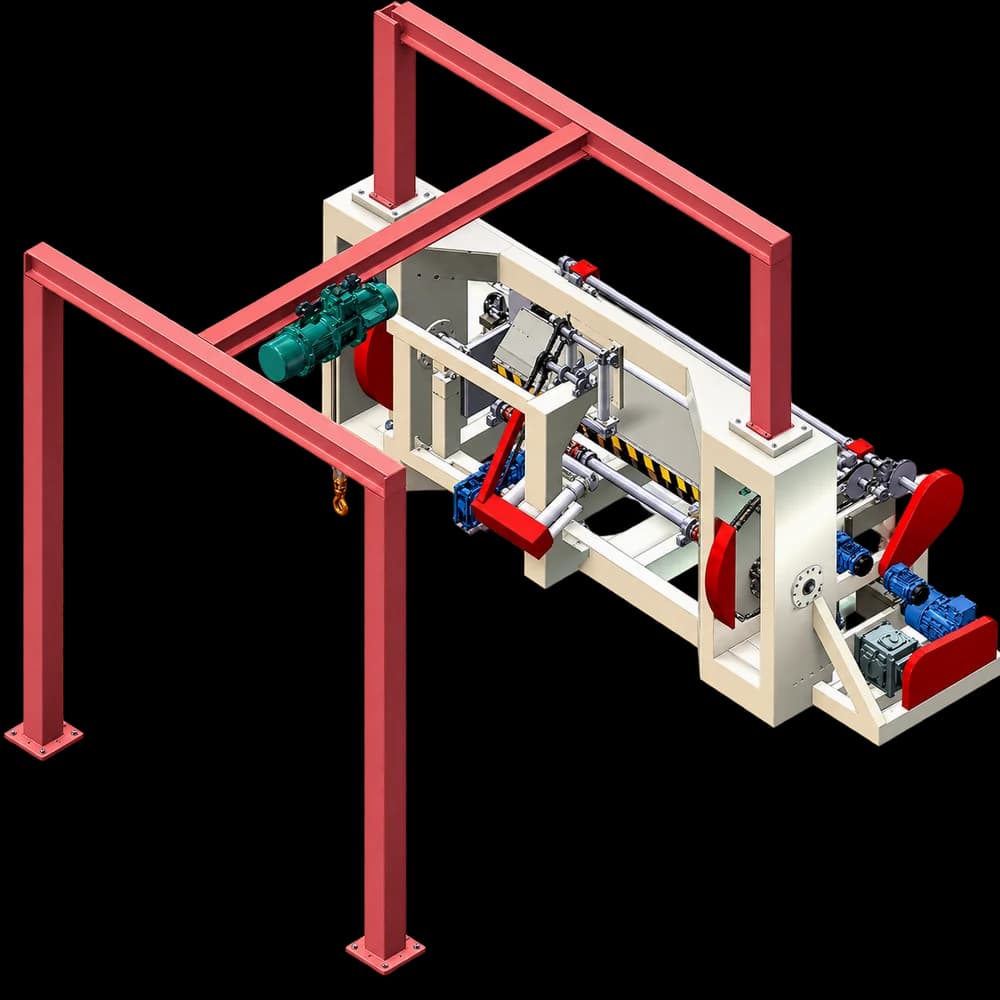

8 ft Spindle-Type Veneer Peeling Machine
CZ-PR-014
Used in the veneer production stage of a plywood line. Key figures — Maximum peeling diameter: 1500 mm; Wood length: 2000–2600 mm
- Stage 02 of the CUTZILA plywood line (veneer production)
- Maximum peeling diameter: 1500 mm
Specifications
Specifications
| Technical parameter | Value |
|---|---|
| Maximum peeling diameter | 1500 mm |
| Wood length | 2000–2600 mm |
| Peeling knife size | 2700 × 160 × 12.7 mm |
| Remaining core diameter | 130 mm |
| Speed | 40–60 m/min |
| Veneer thickness | 0.2–1 mm |
| Main motor | 30 kW |
| Feeding motor | 1.5 kW |
| Knife adjustment motor | 1.1 kW |
| Hydraulic station | 0.75 kW |
| Weight | 8000 kg |
| Overall dimensions | 6000 × 2300 × 2600 mm |
| Chuck motor | 4 kW |
| Crane motors | 3 kW × 2 |
Why this machine
Built for the work
Used in the veneer production stage of a plywood line. Key figures — Maximum peeling diameter: 1500 mm; Wood length: 2000–2600 mm; Peeling knife size: 2700 × 160 × 12.7 mm.
- Stage 02 of the CUTZILA plywood line (veneer production); also supplied as a standalone machine.
- Maximum peeling diameter: 1500 mm; Wood length: 2000–2600 mm.
