Stage 02 · Veneer production
Wood Panel Production

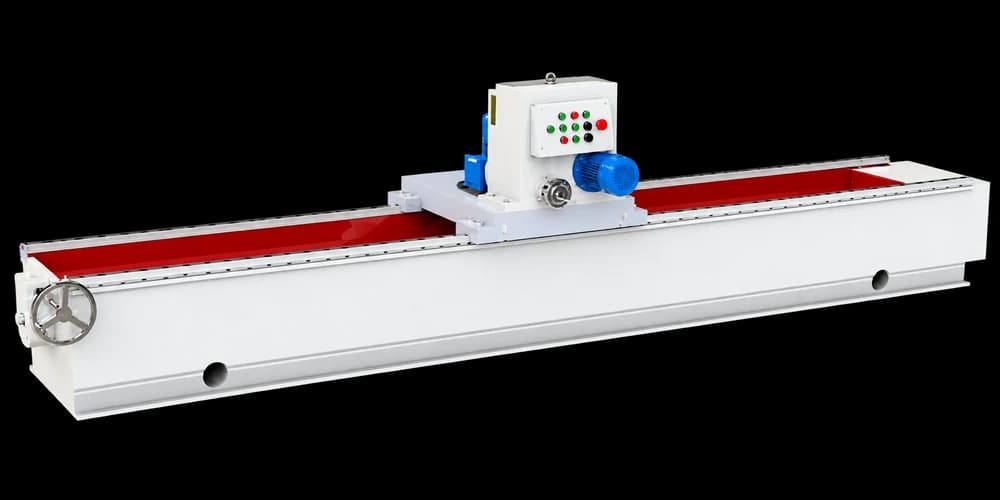

8 ft Knife Grinding Machine
CZ-PR-017
Used in the veneer production stage of a plywood line. Key figures — Grinding wheel size: 200 × 100 × 32 mm; Cooling: Water tank with internal pump and recirculating spray
- Stage 02 of the CUTZILA plywood line (veneer production)
- Grinding wheel size: 200 × 100 × 32 mm
Specifications
Specifications
| Technical parameter | Value |
|---|---|
| Grinding wheel size | 200 × 100 × 32 mm |
| Cooling | Water tank with internal pump and recirculating spray |
| Guide rail | Wear-resistant strips |
| Grinding precision (as printed) | ≤0.05 mm/min |
| Working voltage | 380 V; customizable |
| Grinding head drive | V-belt |
| Grinding head travel speed | Approx. 17 m/min |
| Grinding head adjustment | ±5° |
| Worktable adjustment | ±90° |
| Control | Push-button |
| Lift motor | 0.75 kW |
| Travel motor | 0.75 kW |
| Pump motor | 0.125 kW |
| Working platform | 2800 × 180 mm; electromagnetic chuck |
| Maximum grinding length | 2800 mm |
| Grinding head motor | 4 kW at 1440 rpm |
| Total power | 5.5 kW |
| Approximate weight | 2200 kg |
| Overall dimensions | 4500 × 1200 × 1200 mm |
Why this machine
Built for the work
Used in the veneer production stage of a plywood line. Key figures — Grinding wheel size: 200 × 100 × 32 mm; Cooling: Water tank with internal pump and recirculating spray; Guide rail: Wear-resistant strips.
- Stage 02 of the CUTZILA plywood line (veneer production); also supplied as a standalone machine.
- Grinding wheel size: 200 × 100 × 32 mm; Cooling: Water tank with internal pump and recirculating spray.
