Stage 03 · Veneer drying
Wood Panel Production

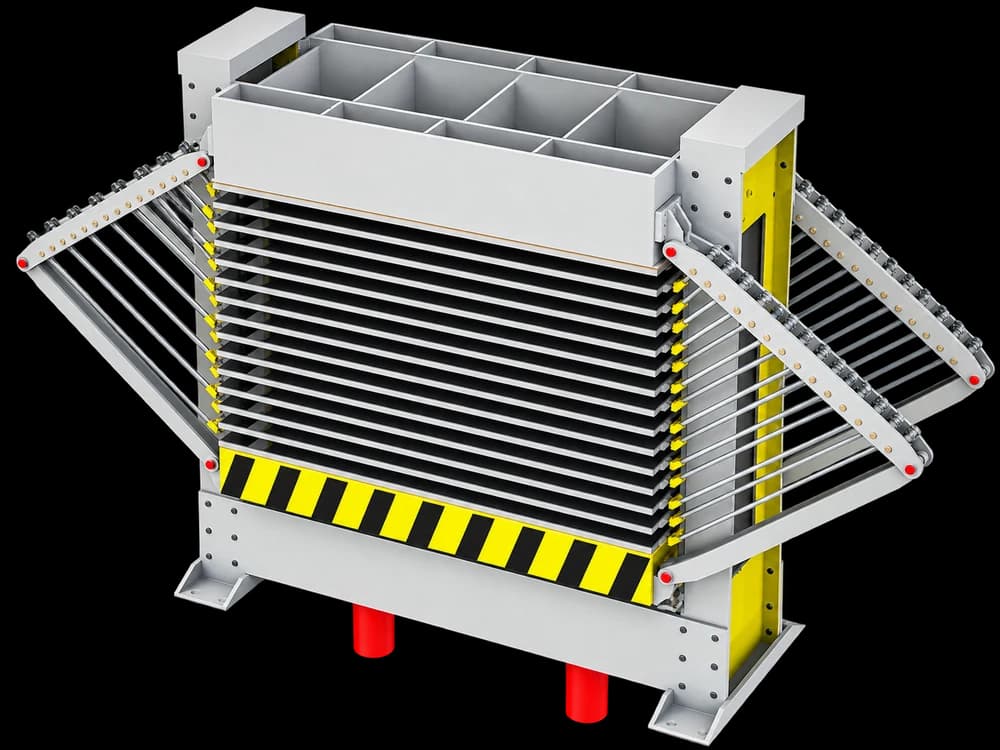

Solid-Platen Veneer Press Dryer
CZ-PR-019
Used in the veneer drying stage of a plywood line. Key figures — Veneer feeding direction: Transverse; Layers: 15
- Stage 03 of the CUTZILA plywood line (veneer drying)
- Veneer feeding direction: Transverse
Specifications
Specifications
| Technical parameter | Value |
|---|---|
| Veneer feeding direction | Transverse |
| Layers | 15 |
| Layer spacing | 70 mm |
| Hot plate quantity | 16 |
| Cylinder stroke | 1050 mm |
| Middle beam | 200 mm |
| Total pressure | 120 tons |
| Solid hot plate size | 2700 × 1370 × 42 mm |
| Plate grooves | 20 × 20 mm |
| Cylinder diameter / quantity | 180 mm × 2 |
| Hydraulic station motors | 11 + 7.5 kW |
| Upper and lower beam | 500 mm |
| Simultaneous closing system | 2 groups |
| Weight | 25000 kg |
| Overall dimensions | 3450 × 1370 × 3200 mm |
Why this machine
Built for the work
Used in the veneer drying stage of a plywood line. Key figures — Veneer feeding direction: Transverse; Layers: 15; Layer spacing: 70 mm.
- Stage 03 of the CUTZILA plywood line (veneer drying); also supplied as a standalone machine.
- Veneer feeding direction: Transverse; Layers: 15.
