Stage 03 · Veneer drying
Wood Panel Production

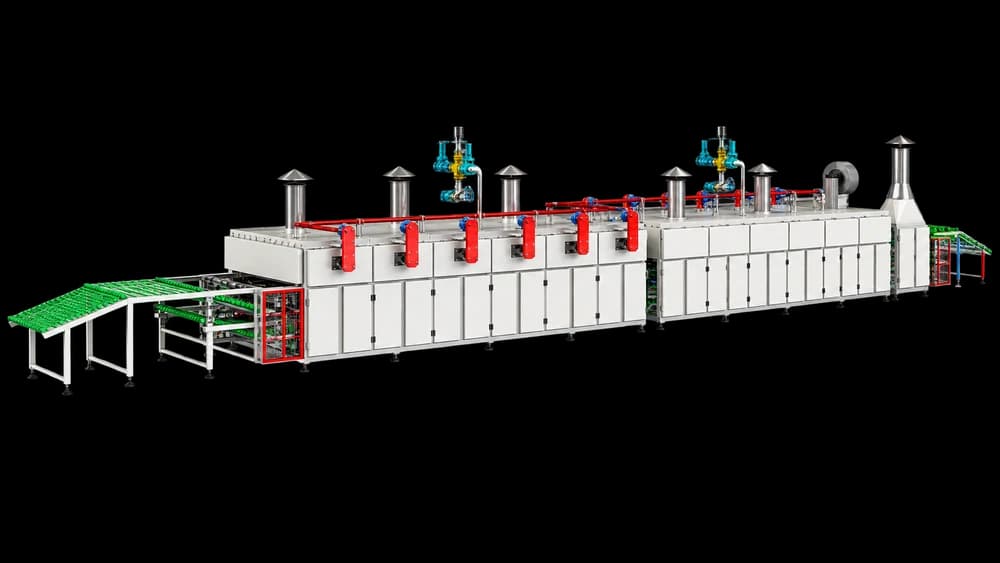

Mesh-Belt Veneer Dryer
CZ-PR-020
Used in the veneer drying stage of a plywood line. Key figures — Heating zone length: 12 × 2000 = 24000 mm; Heating medium: Thermal oil / steam
- Stage 03 of the CUTZILA plywood line (veneer drying)
- Heating zone length: 12 × 2000 = 24000 mm
Specifications
Specifications
| Technical parameter | Value |
|---|---|
| Heating zone length | 12 × 2000 = 24000 mm |
| Heating medium | Thermal oil / steam |
| Initial moisture | 60% |
| Final moisture | 10 ± 2% |
| Working width | 2700 mm |
| Layers | 2 |
| Cooling zone length | 1 × 2000 = 2000 mm |
| Feeding zone length | 5000 mm |
| Outfeed zone length | 6000 mm |
| Total power | 105 kW |
| Feeding conveyor motors | 1.5 kW × 2 |
| Transmission motors | 4 kW × 2 |
| Heating motors | 7.5 kW × 12 |
| Cooling motor | 4 kW |
| Speed | 1–15 m/min |
| Heating consumption (as printed) | 1.2 million kcal / 2 tons |
| Heat exchanger size / quantity | 1850 × 300 × 1100 mm × 12 |
| Drying temperature | 100–140 °C |
| Veneer thickness | 0.1–1.5 mm |
| Capacity | 1.5–2.2 m³/h |
| Mesh belt options | Stainless steel; galvanized steel; Teflon |
| Overall dimensions | 37000 × 5700 × 2700 mm |
| Weight | 35000 kg |
Why this machine
Built for the work
Used in the veneer drying stage of a plywood line. Key figures — Heating zone length: 12 × 2000 = 24000 mm; Heating medium: Thermal oil / steam; Initial moisture: 60%.
- Stage 03 of the CUTZILA plywood line (veneer drying); also supplied as a standalone machine.
- Heating zone length: 12 × 2000 = 24000 mm; Heating medium: Thermal oil / steam.
