Stage 03 · Veneer drying
Wood Panel Production

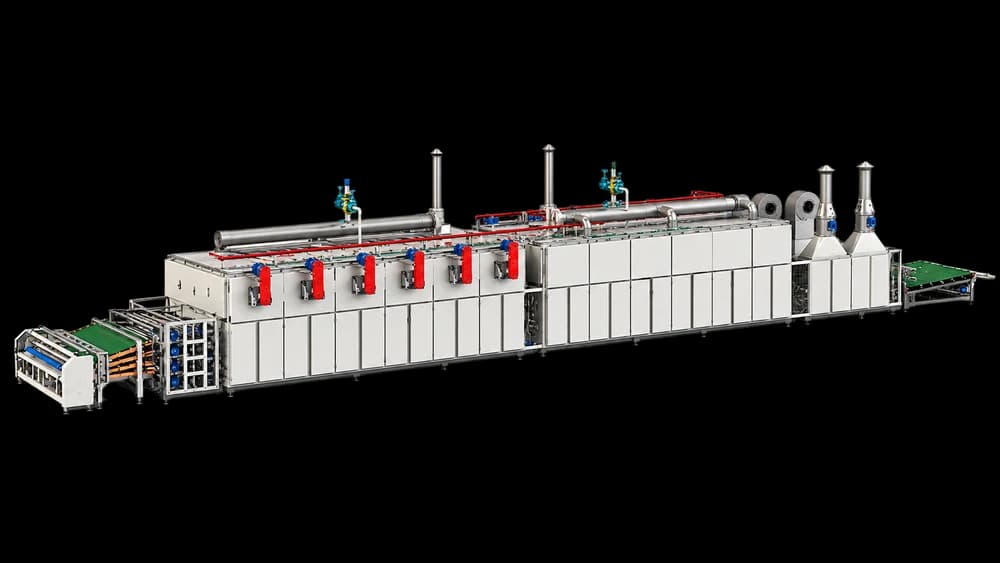

Roller Veneer Dryer
CZ-PR-021
Used in the veneer drying stage of a plywood line. Key figures — Heating zone length: 12 × 2000 = 24000 mm; Heating medium: Thermal oil / steam
- Stage 03 of the CUTZILA plywood line (veneer drying)
- Heating zone length: 12 × 2000 = 24000 mm
Specifications
Specifications
| Technical parameter | Value |
|---|---|
| Heating zone length | 12 × 2000 = 24000 mm |
| Heating medium | Thermal oil / steam |
| Initial moisture | 60% |
| Final moisture | 10 ± 2% |
| Working width | 3000 mm |
| Layers | 4 |
| Cooling zone length | 2 × 2000 = 4000 mm |
| Feeding zone length | 3000 mm |
| Outfeed zone length | 6500 mm |
| Total power | 228 kW |
| Transmission motors | 11 kW × 4 |
| Heating motors | 15 kW × 12 |
| Cooling motors | 5.5 kW × 4 |
| Moisture exhaust motor | 7.5 kW |
| Speed | 1–30 m/min |
| Heating consumption (as printed) | 2.7 million kcal / 4.5 tons |
| Heat exchanger size / quantity | 1800 × 500 × 1400 mm × 12 |
| Drying temperature | 100–170 °C |
| Veneer thickness | 1.5–4 mm |
| Capacity | 3.0–3.5 m³/h |
| Roller spacing | 330 mm |
| Roller diameter | 100 mm |
| Overall dimensions | 38000 × 5700 × 3700 mm |
| Weight | 87000 kg |
Why this machine
Built for the work
Used in the veneer drying stage of a plywood line. Key figures — Heating zone length: 12 × 2000 = 24000 mm; Heating medium: Thermal oil / steam; Initial moisture: 60%.
- Stage 03 of the CUTZILA plywood line (veneer drying); also supplied as a standalone machine.
- Heating zone length: 12 × 2000 = 24000 mm; Heating medium: Thermal oil / steam.
