Stage 04 · Veneer repair & composing
Wood Panel Production

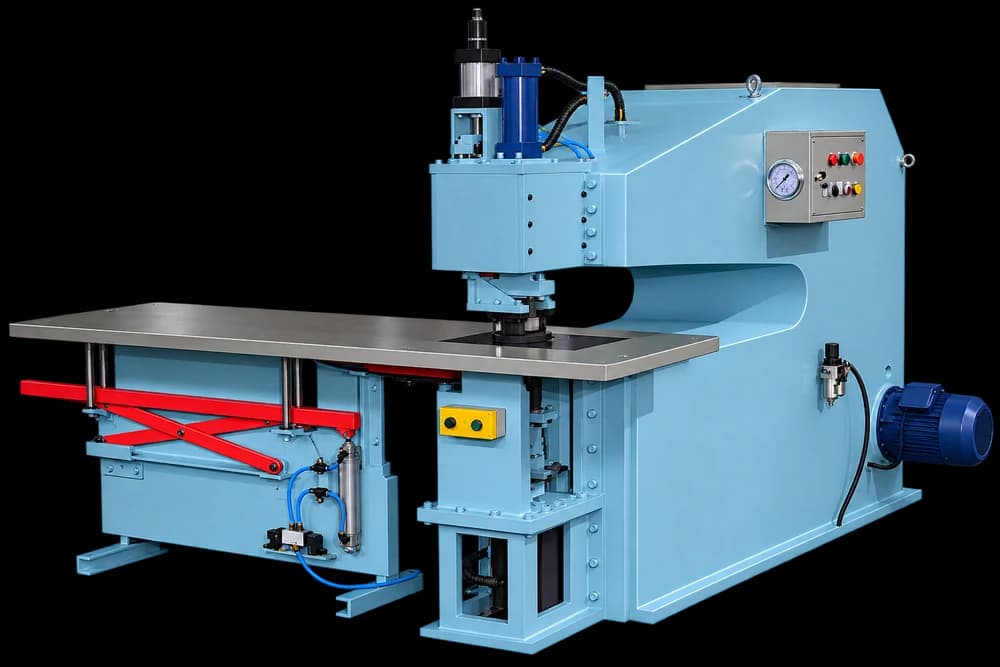

Veneer Patching Machine
CZ-PR-022
Veneer Patching Machine for veneer repair and composing ahead of lay-up.
- Stage 04 of the CUTZILA plywood line (veneer repair and composing)
- Veneer thickness: 1.5–3.5 mm
Specifications
Specifications
| Technical parameter | Value |
|---|---|
| Veneer thickness | 1.5–3.5 mm |
| Butterfly patch size | 60 × 100 mm |
| Patching cycle | Approx. 3 s/cycle |
| Power | 6.05 kW |
| Compressed air pressure (as printed) | 4–6 kg/cm² |
| Normal oil pressure | 16 MPa |
| Cylinder diameter | 63 mm |
| Feeding | Automatic |
| Overall dimensions | 2900 × 1450 × 1900 mm |
| Approximate weight | 3500 kg |
Why this machine
Built for the work
Veneer Patching Machine for veneer repair and composing ahead of lay-up.
- Stage 04 of the CUTZILA plywood line (veneer repair and composing); also supplied as a standalone machine.
- Veneer thickness: 1.5–3.5 mm; Butterfly patch size: 60 × 100 mm.
