Stage 04 · Veneer repair & composing
Wood Panel Production

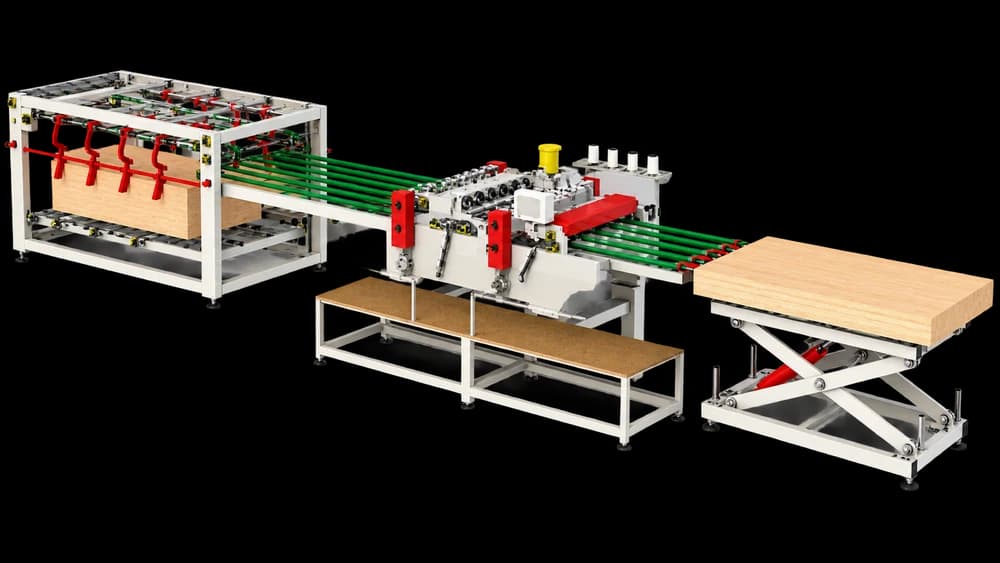

Transverse Veneer Composing Line
CZ-PR-023
Transverse Veneer Composing Line for veneer repair and composing ahead of lay-up.
- Stage 04 of the CUTZILA plywood line (veneer repair and composing)
- Veneer width: 960–1280 mm
Specifications
Specifications
| Technical parameter | Value |
|---|---|
| Veneer width | 960–1280 mm |
| Veneer length | 1920–2560 mm |
| Veneer thickness | 1.5–4 mm |
| Knife length | 1500 mm |
| Speed | 0–60 m/min |
| Feeding conveyor | 3 kW |
| Edge cutting | 2.3 kW |
| Waste conveyor | 0.75 kW |
| Splicing conveyor | 3 kW |
| Synchronization | 1.5 kW |
| Cutting | 2.3 kW |
| Conveyor to stacker | 1.5 kW |
| Stacker | 1.5 kW |
| Lifting | 1.5 kW |
| Stacking / outfeed motors | 0.75 kW × 2 |
| Air blower | 0.18 kW |
| Heating | 8 kW |
| Air conditioner (as printed) | 1.5P |
| Weight | 8000 kg |
| Overall dimensions | 13000 × 2300 × 2400 mm |
Why this machine
Built for the work
Transverse Veneer Composing Line for veneer repair and composing ahead of lay-up.
- Stage 04 of the CUTZILA plywood line (veneer repair and composing); also supplied as a standalone machine.
- Veneer width: 960–1280 mm; Veneer length: 1920–2560 mm.
