Stage 05 · Glue application
Wood Panel Production

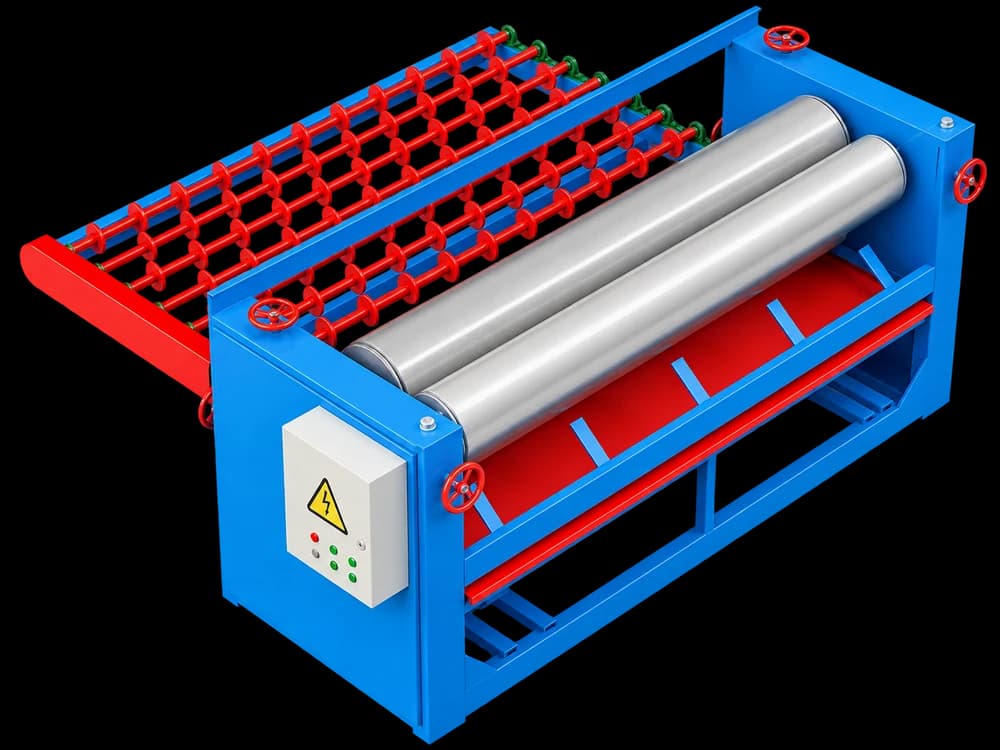

8 ft Glue Spreading Machine
CZ-PR-025
Grooved nitrile rollers for even glue application; stainless-faced steel rollers
- Stage 05 of the CUTZILA plywood line (glue application)
- Rubber roller diameter: 410 mm
Specifications
Specifications
| Technical parameter | Value |
|---|---|
| Rubber roller diameter | 410 mm; grooved nitrile rubber |
| Steel roller diameter | 275 mm; stainless steel facing |
| Roller quantity | 4 |
| Maximum spreading width | 2700 mm |
| Motor power | 7.5 + 1.5 kW |
| Conveyor motor | 0.75 kW |
| Conveyor dimensions | 2720 × 1500 × 800 mm |
| Weight | 3500 kg |
| Overall dimensions | 3500 × 1500 × 1600 mm |
Why this machine
Built for the work
Grooved nitrile rollers for even glue application; stainless-faced steel rollers; adjustable speed via frequency control.
- Stage 05 of the CUTZILA plywood line (glue application); also supplied as a standalone machine.
- Rubber roller diameter: 410 mm; grooved nitrile rubber; Steel roller diameter: 275 mm; stainless steel facing.
