Stage 05 · Glue application
Wood Panel Production

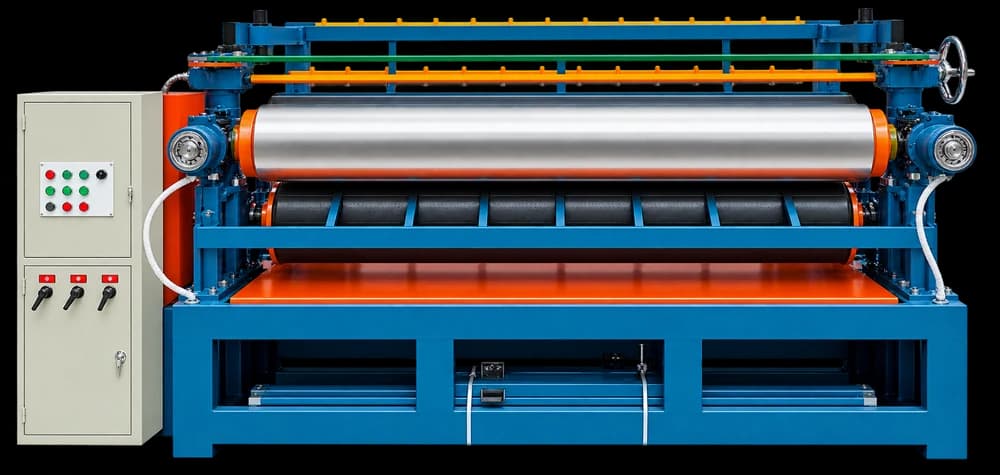

8 ft Pneumatic Glue Spreading Machine
CZ-PR-027
Pneumatic roller operation; automatic compensation for uneven panel thickness
- Stage 05 of the CUTZILA plywood line (glue application)
- Maximum glue roller speed: 0–69 rpm
Specifications
Specifications
| Technical parameter | Value |
|---|---|
| Maximum glue roller speed | 0–69 rpm |
| Doctor roller speed | 0–17 rpm |
| Feeding speed | 0–90 m/min |
| Rubber roller diameter | 418 mm; grooved nitrile rubber |
| Steel roller diameter | 295 mm; stainless steel facing |
| Roller quantity | 4 |
| Maximum spreading width | 2700 mm |
| Motor power | 5.5 + 4 + 1.5 kW |
| Weight | 5500 kg |
| Overall dimensions | 4500 × 2900 × 1850 mm |
Why this machine
Built for the work
Pneumatic roller operation; automatic compensation for uneven panel thickness; variable-frequency speed adjustment.
- Stage 05 of the CUTZILA plywood line (glue application); also supplied as a standalone machine.
- Maximum glue roller speed: 0–69 rpm; Doctor roller speed: 0–17 rpm.
