Stage 07 · Pressing
Wood Panel Production

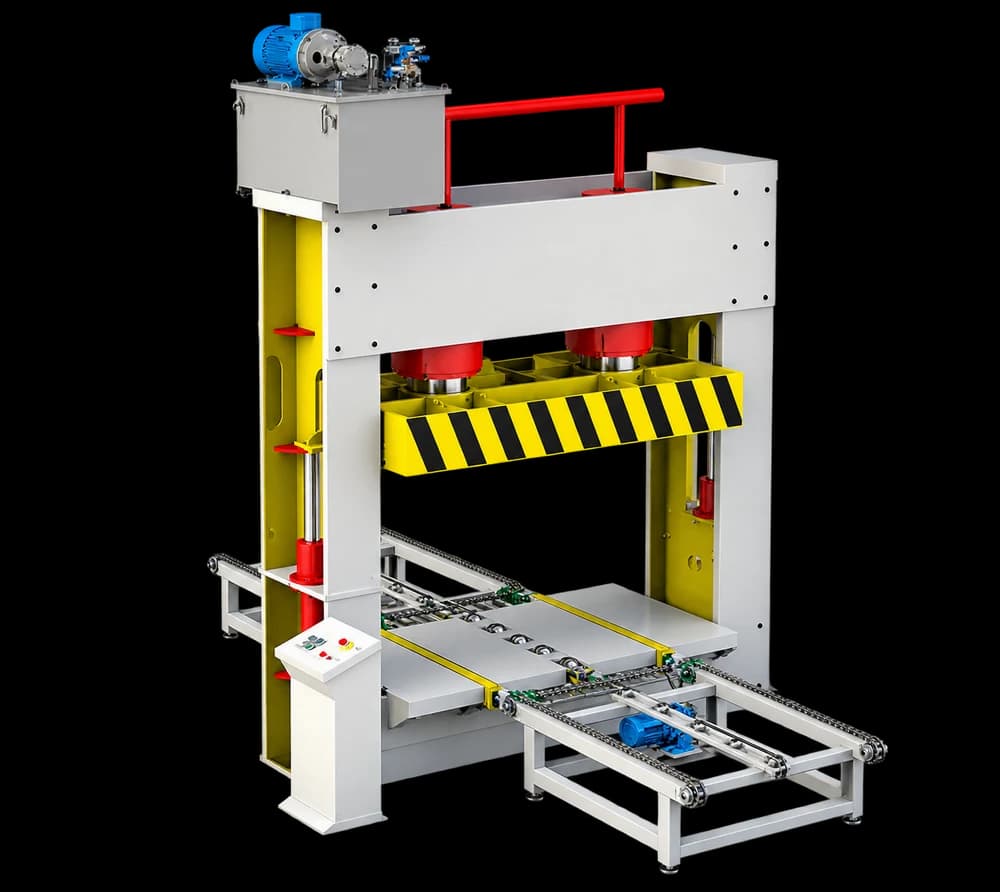

500 t Plywood Cold Press
CZ-PR-030
Used in the pressing stage of a plywood line. Key figures — Plywood feeding direction: Transverse; Upper and lower beam: 900 mm
- Stage 07 of the CUTZILA plywood line (pressing)
- Plywood feeding direction: Transverse
Specifications
Specifications
| Technical parameter | Value |
|---|---|
| Plywood feeding direction | Transverse |
| Upper and lower beam | 900 mm |
| Middle beam | 400 mm |
| Total pressure | 500 tons |
| Layers | 1 |
| Opening | 1600 mm |
| Working table size | 2700 × 1370 mm |
| Main cylinder diameter / quantity | 360 mm × 2 |
| Lift cylinder diameter / quantity | 80 mm × 2 |
| Stroke | 1000 mm |
| Hydraulic station motor | 11 kW |
| Frame | 35 mm single frame; Q235 |
| Conveyor | Chain conveyor |
| Weight | 14000 kg |
| Overall dimensions | 3550 × 1370 × 4650 mm |
Why this machine
Built for the work
Used in the pressing stage of a plywood line. Key figures — Plywood feeding direction: Transverse; Upper and lower beam: 900 mm; Middle beam: 400 mm.
- Stage 07 of the CUTZILA plywood line (pressing); also supplied as a standalone machine.
- Plywood feeding direction: Transverse; Upper and lower beam: 900 mm.
