Stage 08 · Panel finishing
Wood Panel Production

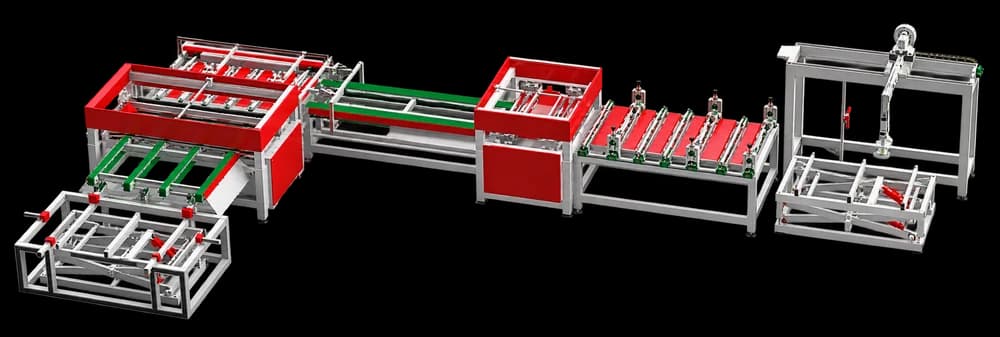

Automatic Plywood Roller Saw Line
CZ-PR-035
Used in the panel finishing stage of a plywood line. Key figures — Longitudinal cutting size: 2500 mm; Transverse cutting size: 1250 mm
- Stage 08 of the CUTZILA plywood line (panel finishing)
- Longitudinal cutting size: 2500 mm
Specifications
Specifications
| Technical parameter | Value |
|---|---|
| Longitudinal cutting size | 2500 mm |
| Transverse cutting size | 1250 mm |
| Working speed | 10–30 m/min |
| Cutting motors | 11 kW × 4 |
| Scoring saw motors | 1.5 kW × 4 |
| Transfer motors | 3 kW × 2 |
| Lift table motor | 3 kW × 1 |
| Automatic stacker motor | 3 kW |
| Lifting table motors | 3 kW × 2 |
| Dust collector motor | 5.5 kW |
| Feeder motor | 3 kW |
| Main saw blade | 305 mm diameter; 25.4 mm bore |
| Scoring blade | 180 mm diameter; 25.4 mm bore |
| Saw blade speed | 6200 rpm |
| Diagonal tolerance | <2 mm |
| Correction rollers | 89 × 1300 mm diameter × length |
| Vertical saw rollers | 127 × 1400 mm diameter × length |
| Cross saw rollers | 127 × 2600 mm diameter × length |
| Feeding | Automatic |
| Stacking | Automatic |
| Electrical components | Schneider |
| Feeder lift table | 1 set |
| Weight | 11000 kg |
| Overall dimensions | 12900 × 5500 × 1250 mm |
Why this machine
Built for the work
Used in the panel finishing stage of a plywood line. Key figures — Longitudinal cutting size: 2500 mm; Transverse cutting size: 1250 mm; Working speed: 10–30 m/min.
- Stage 08 of the CUTZILA plywood line (panel finishing); also supplied as a standalone machine.
- Longitudinal cutting size: 2500 mm; Transverse cutting size: 1250 mm.
