Stage 08 · Panel finishing
Wood Panel Production

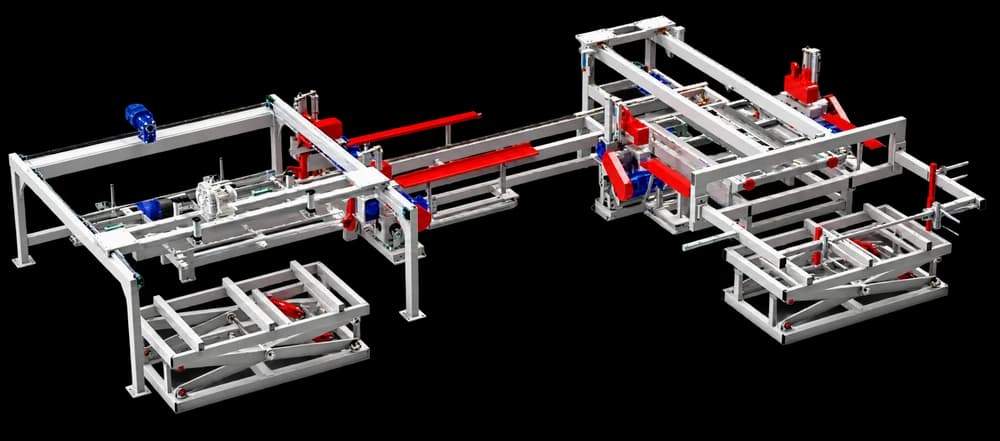

Plywood Edge Trimming Saw
CZ-PR-036
Used in the panel finishing stage of a plywood line. Key figures — Panel width (Chinese column): 1220 mm; Panel length (Chinese column): 2440 mm
- Stage 08 of the CUTZILA plywood line (panel finishing)
- Panel width (Chinese column): 1220 mm
Specifications
Specifications
| Technical parameter | Value |
|---|---|
| Panel width (Chinese column) | 1220 mm |
| Panel length (Chinese column) | 2440 mm |
| Working speed | 10–30 m/min |
| Cutting motors | 7.5 kW × 4 |
| Conveyor motors | 1.5 kW × 2 |
| Automatic stacker motor | 3 kW |
| Dust collector motor | 4 kW |
| Saw blade diameter | 305 mm |
| Saw blade bore | 25.4 mm |
| Saw blade material | Alloy |
| Maximum working thickness | 60 mm |
| Capacity | 8–12 panels/min |
| Guidance | Infrared ray |
| Operation | Semi-automatic |
| Weight | 5000 kg |
| Overall dimensions | 8000 × 5000 × 1200 mm |
Why this machine
Built for the work
Used in the panel finishing stage of a plywood line. Key figures — Panel width (Chinese column): 1220 mm; Panel length (Chinese column): 2440 mm; Working speed: 10–30 m/min.
- Stage 08 of the CUTZILA plywood line (panel finishing); also supplied as a standalone machine.
- Panel width (Chinese column): 1220 mm; Panel length (Chinese column): 2440 mm.
