Stage 08 · Panel finishing
Wood Panel Production

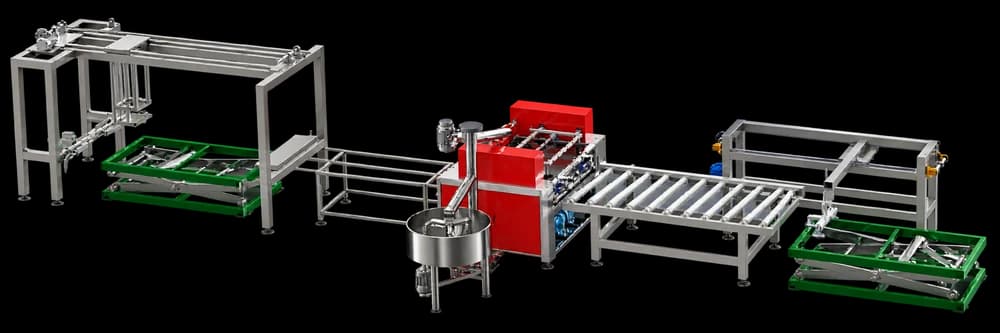

Plywood Putty and Panel Repair Line
CZ-PR-037
Surface filling and smoothing; vacuum feeding
- Stage 08 of the CUTZILA plywood line (panel finishing)
- Working width: 1300 mm
Specifications
Specifications
| Technical parameter | Value |
|---|---|
| Working width | 1300 mm |
| Panel thickness | 9–60 mm |
| Speed | 10–30 m/min |
| Vacuum feeder | 1.5 kW |
| Lift table | 3 kW |
| Feed conveyor | 0.75 kW |
| Putty machine motors | 7.5 + 1.5 kW |
| Glue mixer | 4 kW |
| Outfeed conveyor | 0.75 kW |
| Stacker motors | 3 kW × 2 |
| Weight | 4500 kg |
| Layout dimensions | 17000 × 2200 × 2500 mm |
Why this machine
Built for the work
Surface filling and smoothing; vacuum feeding; automatic stacking.
- Stage 08 of the CUTZILA plywood line (panel finishing); also supplied as a standalone machine.
- Working width: 1300 mm; Panel thickness: 9–60 mm.
