Stage 08 · Panel finishing
Wood Panel Production

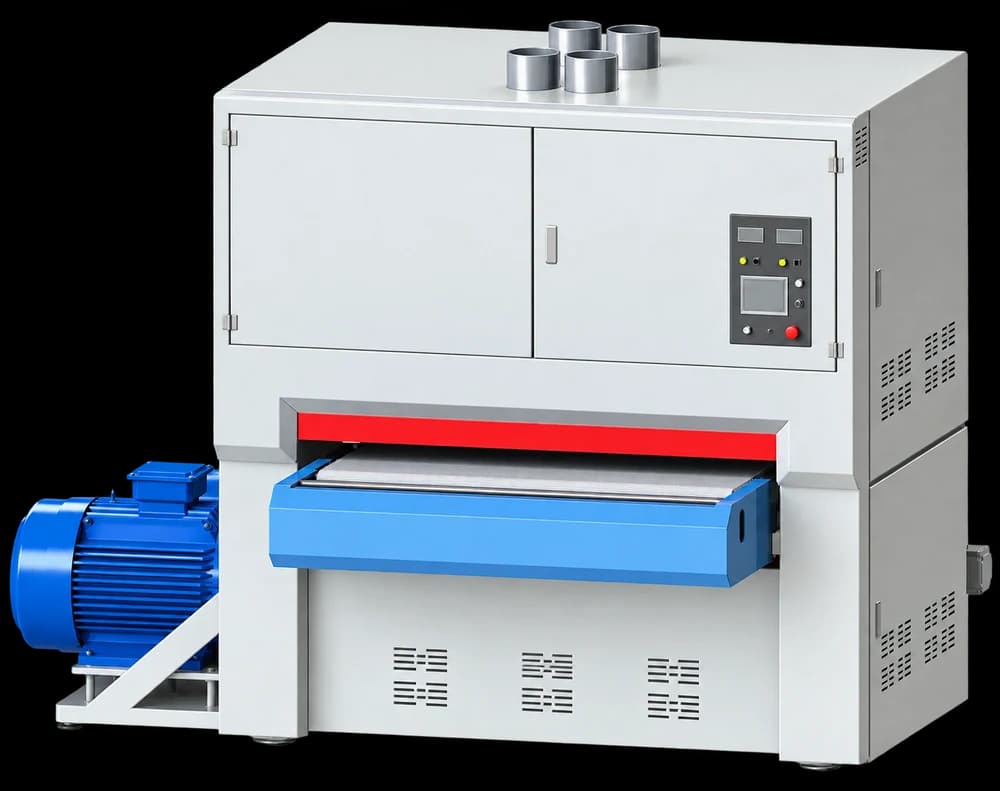

Wide-Belt Thickness Sanding Machine
CZ-PR-038
Used in the panel finishing stage of a plywood line. Key figures — Working width: ≤1300 mm; Working thickness: 2.5–120 mm
- Stage 08 of the CUTZILA plywood line (panel finishing)
- Working width: ≤1300 mm
Specifications
Specifications
| Technical parameter | Value |
|---|---|
| Working width | ≤1300 mm |
| Working thickness | 2.5–120 mm |
| Working length | ≥500 mm |
| Working precision | ±0.1 mm |
| Abrasive belt size (as printed) | 1330 × 2200 m |
| Belt speeds | 20 / 18 m/s |
| Feeding speed | 6–30 m/min |
| Main motors | 55 + 22 kW |
| Feeding motor | 5.5 kW |
| Air consumption | 1.0 m³/h |
| Weight | 4000 kg |
| Overall dimensions | 2600 × 2100 × 2150 mm |
Why this machine
Built for the work
Used in the panel finishing stage of a plywood line. Key figures — Working width: ≤1300 mm; Working thickness: 2.5–120 mm; Working length: ≥500 mm.
- Stage 08 of the CUTZILA plywood line (panel finishing); also supplied as a standalone machine.
- Working width: ≤1300 mm; Working thickness: 2.5–120 mm.
