Stage 08 · Panel finishing
Wood Panel Production

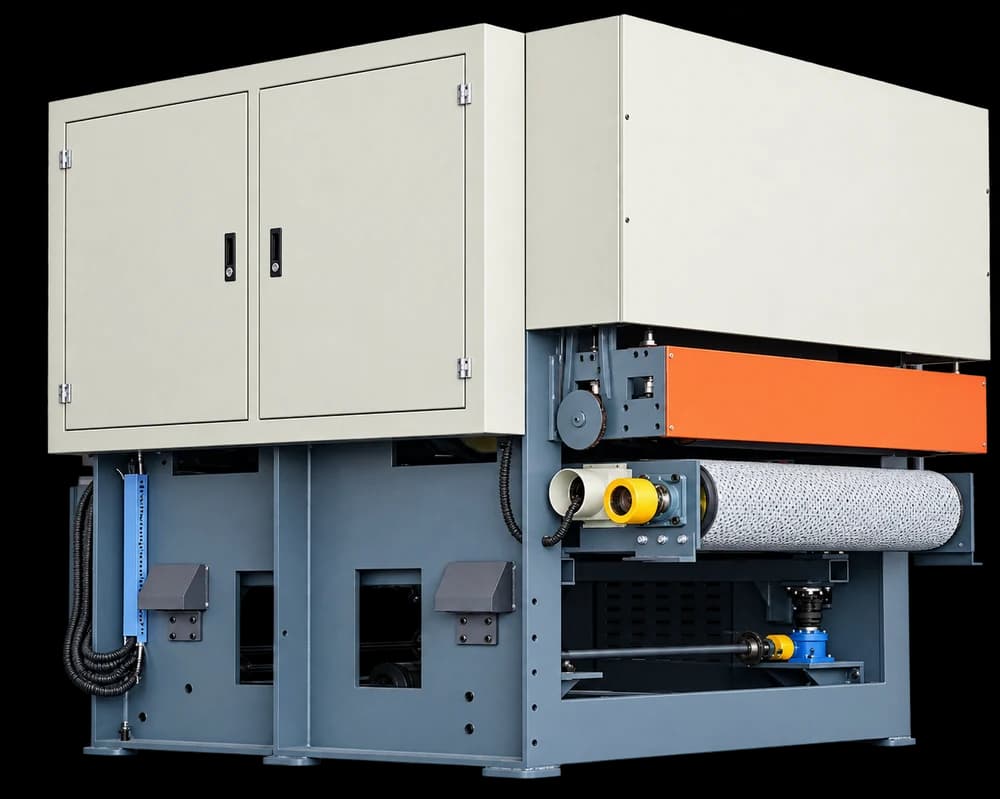

Single-Side Sanding Machine
CZ-PR-039
Used in the panel finishing stage of a plywood line. Key figures — Working width: ≤1300 mm; Working thickness: 5–100 mm
- Stage 08 of the CUTZILA plywood line (panel finishing)
- Working width: ≤1300 mm
Specifications
Specifications
| Technical parameter | Value |
|---|---|
| Working width | ≤1300 mm |
| Working thickness | 5–100 mm |
| Working length | ≥500 mm |
| Working precision | ±0.1 mm |
| Abrasive belt size (as printed) | 1330 × 2620 m |
| Belt speeds | 25 / 18 m/s |
| Feeding speed | 20–100 m/min |
| Main motors | 75 + 55 kW |
| Feeding motor | 11 kW |
| Air consumption | 0.1 m³/min |
| Dust extraction velocity | 25–30 m/s |
| Dust extraction flow | 28000 m³/h |
| Weight | 9500 kg |
| Overall dimensions | 2700 × 2340 × 2440 mm |
Why this machine
Built for the work
Used in the panel finishing stage of a plywood line. Key figures — Working width: ≤1300 mm; Working thickness: 5–100 mm; Working length: ≥500 mm.
- Stage 08 of the CUTZILA plywood line (panel finishing); also supplied as a standalone machine.
- Working width: ≤1300 mm; Working thickness: 5–100 mm.
