Stage 08 · Panel finishing
Wood Panel Production

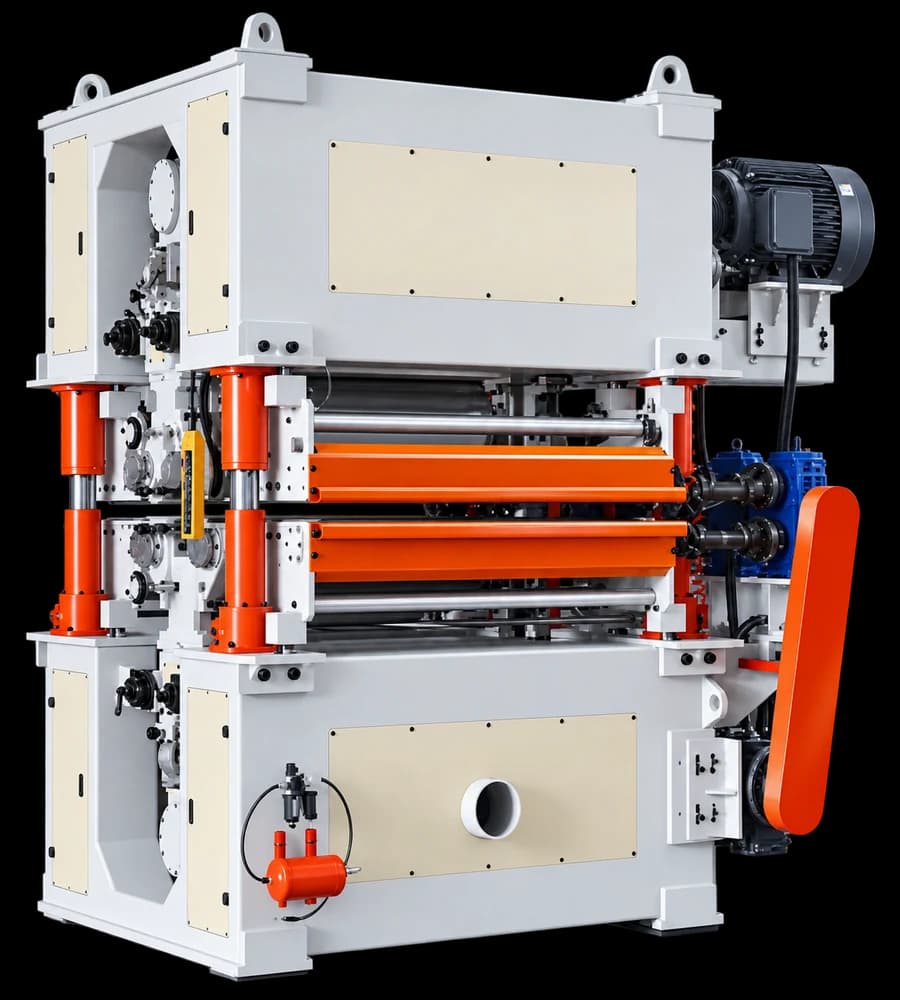

Double-Side Sanding Machine
CZ-PR-040
Used in the panel finishing stage of a plywood line. Key figures — Working width (Chinese): ≤1300 mm; Working thickness (Chinese): 5–100 mm
- Stage 08 of the CUTZILA plywood line (panel finishing)
- Working width (Chinese): ≤1300 mm
Specifications
Specifications
| Technical parameter | Value |
|---|---|
| Working width (Chinese) | ≤1300 mm |
| Working thickness (Chinese) | 5–100 mm |
| Working length (Chinese) | ≥500 mm |
| Working precision (Chinese) | ±0.08 mm |
| Abrasive belt size | 1350 × 2620 mm |
| Belt speed (Chinese) | 32 m/s |
| Feeding speed | 8–40 m/min |
| Main motors (Chinese) | 75 + 75 kW |
| Feeding motor | 11 kW |
| Lift motor | 4 kW |
| Dust extraction velocity (Chinese) | 25–30 m/s |
| Dust extraction flow (Chinese) | 28000 m³/h |
| Weight | 15000 kg |
| Overall dimensions | 3450 × 1880 × 3150 mm |
Why this machine
Built for the work
Used in the panel finishing stage of a plywood line. Key figures — Working width (Chinese): ≤1300 mm; Working thickness (Chinese): 5–100 mm; Working length (Chinese): ≥500 mm.
- Stage 08 of the CUTZILA plywood line (panel finishing); also supplied as a standalone machine.
- Working width (Chinese): ≤1300 mm; Working thickness (Chinese): 5–100 mm.
