Stage 01 · Log preparation
Wood Panel Production

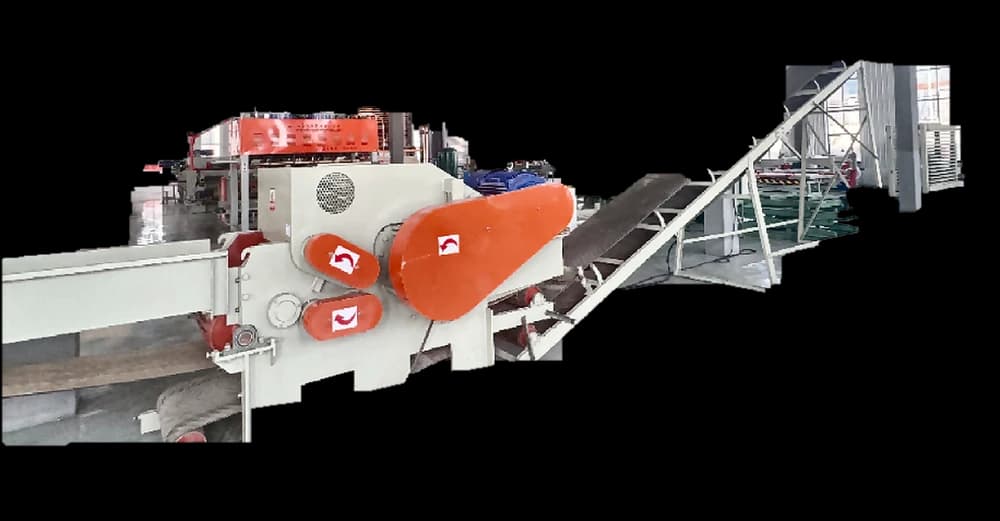

Wood Chipping Machine
CZ-PR-050
Wood Chipping Machine for the log-preparation stage of a plywood and veneer line.
- Stage 01 of the CUTZILA plywood line (log preparation)
- Rotor diameter: 600 mm
Specifications
Specifications
| Technical parameter | Value |
|---|---|
| Rotor diameter | 600 mm |
| Rotor speed | 592 rpm |
| Knife quantity | 2 |
| Feeding conveyors | 2000 mm × 2 |
| Feed conveyor belt size | 700 × 1260 mm |
| Outfeed conveyor belt size | 800 × 10000 mm |
| Maximum stock diameter (as printed) | k200 mm |
| Capacity | 9–11 t/h |
| Chip length | 30–50 mm |
| Outfeed motor | 3 kW |
| Feed motors | 5.5 + 4 kW |
| Main motor | 75 kW |
| Approximate weight | 5.2 t |
| Overall dimensions | 1980 × 2150 × 1250 mm |
Why this machine
Built for the work
Wood Chipping Machine for the log-preparation stage of a plywood and veneer line.
- Stage 01 of the CUTZILA plywood line (log preparation); also supplied as a standalone machine.
- Rotor diameter: 600 mm; Rotor speed: 592 rpm.
