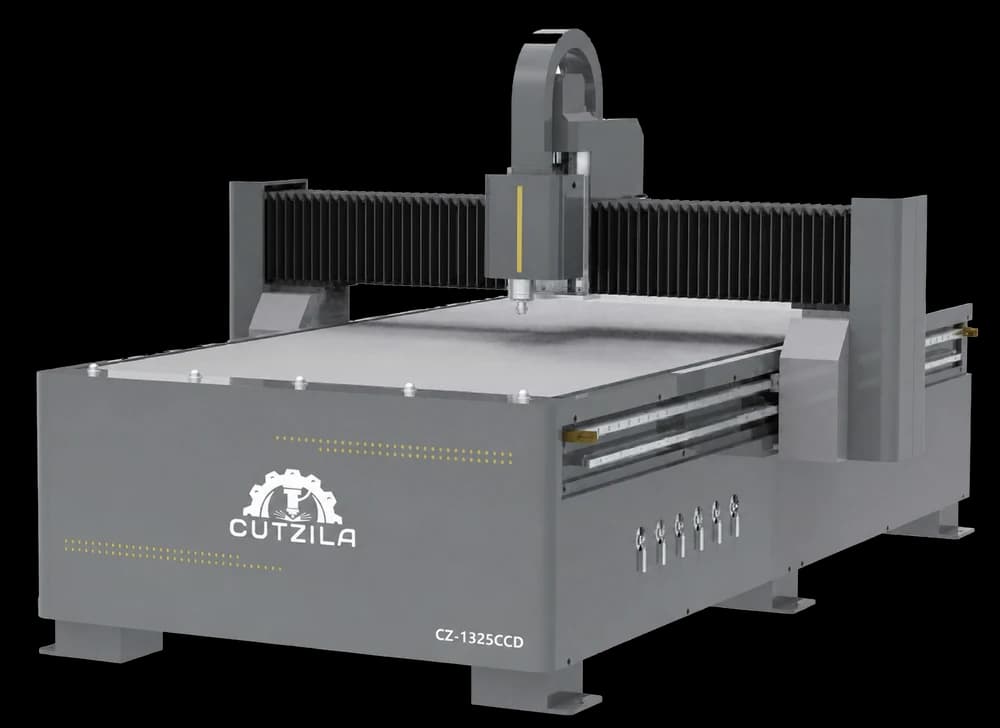

Contour-Cutting CNC Router with CCD
CZ-CCD-1325
CCD contour-cutting CNC router that reads printed registration marks for exact die-cut shapes.
- CCD contour-cutting CNC router that reads printed registration marks for exact die-cut shapes.
- 40,000 rpm high-speed water-cooled spindle for clean edges on acrylic, KT board and ACP.
- 100 m/min traverse keeps throughput high on short-run printed-panel jobs.
- CNC routing / milling
- Acrylic
- Wood / MDF / plywood
- Foam / EVA
- PVC / ABS
- Composite panel (ACP)
Specifications
Specifications
| Technical parameter | Value |
|---|---|
| Working area | 1300×2500 mm |
| Machining accuracy | ±0.08 mm |
| Spindle power | 3 kW high-speed water-cooled spindle |
| Running speed | 100 m/min |
| Spindle speed | 40000 rpm |
| Feeding height | 80 mm |
| Blade diameter | φ3.175 / φ6 / φ12.7 mm |
Why this machine
Built for the work
CCD contour-cutting CNC router that reads printed registration marks for exact die-cut shapes.
- CCD contour-cutting CNC router that reads printed registration marks for exact die-cut shapes.
- 40,000 rpm high-speed water-cooled spindle for clean edges on acrylic, KT board and ACP.
- 100 m/min traverse keeps throughput high on short-run printed-panel jobs.
On the shop floor
What you can make
